TC Hose coupling, TC Hose Adapter, 316L
Tri-Clamp Hose Barb Adapter
G.O.Science T: 031-375-6493 E-Mail : info@gosci.co.kr
Specifications
MATERIALS:
Stainless steel 316L, 전해연마(EP, Electropolishing)
TRI CLAMP SIZE :
1/2", 3/4" 1.0" , 1.5"
*Other Size : Request
BARB SIZE (Tube ID):
1/8" (3.2mm), 1/4" (6.3mm), 3/8" (9.5mm), 1/2" (12.7mm), 3/4" (19mm)
*Other Size : Request

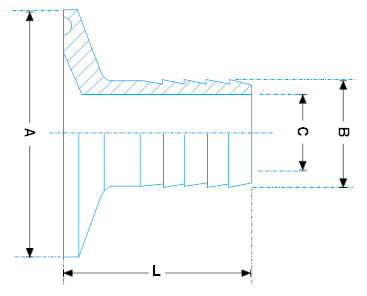

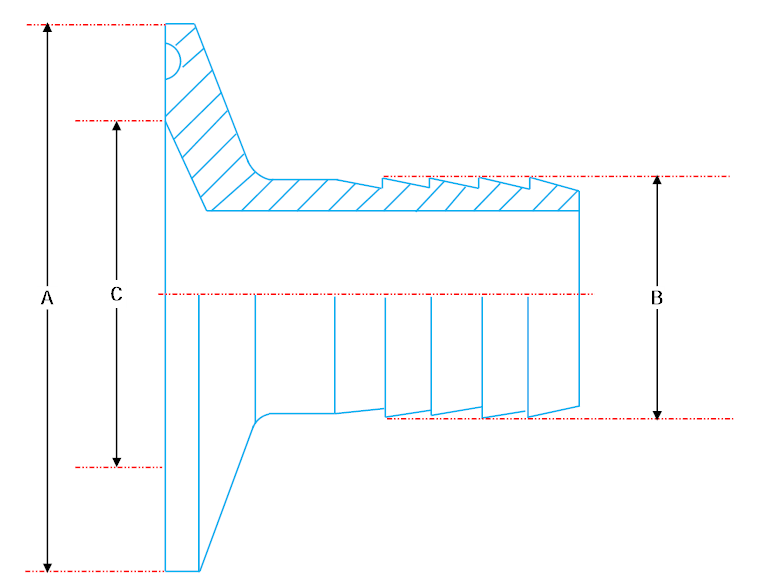

CAT NO | DESCRIPTION | A | B | C |
GOS-TCF001 | 1/2S TRI-CLAMP, HOSE BARB 1/8 ADAPTER | 25 mm | 3.2 mm | 9.4 mm |
| GOS-TCF002 | 1/2S TRI-CLAMP, HOSE BARB 1/4 ADAPTER | 25 mm | 6.3 mm | 9.4 mm |
| GOS-TCF003 | 1/2S TRI-CLAMP, HOSE BARB 3/8" ADAPTER | 25 mm | 9.5 mm | 9.4 mm |
| GOS-TCF004 | 1/2S TRI-CLAMP, HOSE BARB 1/2 ADAPTER | 25 mm | 12.7 mm | 9.4 mm |
| GOS-TCF005 | 3/4S TRI-CLAMP, HOSE BARB 3/4 ADAPTER | 25 mm | 19 mm | 15.8 mm |
| GOS-TCF006 | 1S TRI-CLAMP, HOSE BARB 1/8 ADAPTER | 50 mm | 3.2 mm | 22.1 mm |
| GOS-TCF007 | 1S TRI-CLAMP, HOSE BARB 1/4 ADAPTER | 50 mm | 6.3 mm | 22.1 mm |
| GOS-TCF008 | 1S TRI-CLAMP, HOSE BARB 3/8 ADAPTER | 50 mm | 9.5 mm | 22.1 mm |
| GOS-TCF009 | 1S TRI-CLAMP, HOSE BARB 1/2 ADAPTER | 50 mm | 12.7 mm | 22.1 mm |
| GOS-TCF010 | 1S TRI-CLAMP, HOSE BARB 3/4 ADAPTER | 50 mm | 19 mm | 22.1 mm |
| GOS-TCF011 | 3/4S TRI-CLAMP, HOSE BARB 1/8 ADAPTER | 50 mm | 3.2 mm | 15.8 mm |
| GOS-TCF012 | 3/4S TRI-CLAMP, HOSE BARB 1/4 ADAPTER | 50 mm | 6.3 mm | 15.8 mm |
| GOS-TCF013 | 3/4S TRI-CLAMP, HOSE BARB 3/8 ADAPTER | 50 mm | 9.5 mm | 15.8 mm |
| GOS-TCF014 | 3/4S TRI-CLAMP, HOSE BARB 1/2 ADAPTER | 50 mm | 12.7 mm | 15.8 mm |
| GOS-TCF015 | 1.5S TRI-CLAMP, HOSE BARB 1/8 ADAPTER | 50 mm | 3.2 mm | 34.8 mm |
| GOS-TCF016 | 1.5S TRI-CLAMP, HOSE BARB 1/4 ADAPTER | 50 mm | 6.3 mm | 34.8 mm |
| GOS-TCF017 | 1.5S TRI-CLAMP, HOSE BARB 3/8 ADAPTER | 50 mm | 9.5 mm | 34.8 mm |
| GOS-TCF018 | 1.5S TRI-CLAMP, HOSE BARB 1/2 ADAPTER | 50 mm | 12.7 mm | 34.8 mm |
| GOS-TCF019 | 1.5S TRI-CLAMP, HOSE BARB 3/4 ADAPTER | 50 mm | 19 mm | 34.8 mm |
